Electromagnetic Separator

Electromagnetic Separator ntub dej

Tau txais kev txhawb nqa

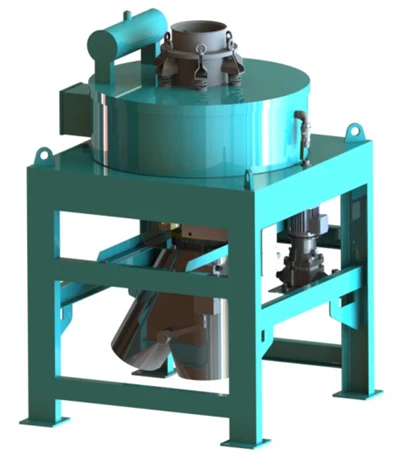

Qhuav Electromagnetic Separator Khoom Tsim

1. Nruab nrab (Screen Optimization Design)

Hom xaiv: ob hom: zoo tib yam mesh thiab loj mesh; xaiv cov ntxaij vab tshaus nrog cov mesh sib txawv raws li qhov fluidity ntawm cov khoom.
Cov khoom siv tshuaj ntsuam: siab sib nqus permeability thiab hnav- cov khoom siv tiv taus (xws li 430 series stainless hlau, thiab lwm yam), electrolysis, sandblasting, thiab polishing

2. Sib Nqus Field Simulation Optimization Tsim

Cov qauv kev faib tawm ntawm lub vijtsam thiab lub vijtsam sib dhos, thiab kev tsim ntawm induction coil, ua lub luag haujlwm tseem ceeb hauv kev ua haujlwm zoo ntawm cov khoom sib nqus. Yog li ntawd, thaum lub sij hawm tsim cov txheej txheem, nws yog ib qho tsim nyog yuav tau simulate thiab optimize cov duab faib thiab siv ntawm cov magnetic teb. Los ntawm kev tsim thiab ua qauv qhia ntawm pab pawg R & D, qhov zoo tshaj plaws magnetic teb faib ntawm demagnetization mechanism tau txais thiab siv rau cov khoom.

3. Qhuav hmoov Magnetic Medium Screen

Nws yog ua los ntawm SUS430, precision ua thiab tshwj xeeb nto kho tshuab. Raws li qhov sib txawv fluidity, particle loj, thiab demagnetization qhov yuav tsum tau ntawm cov ntaub ntawv, ntau yam specifications ntawm magnetic media yog tsim tshwj xeeb. Cov txheej txheem npo qhov sib txawv yog 5MM, 7MM, 10MM, 12MM, 15MM, 20MM, thiab lwm yam. Cov neeg siv tuaj yeem xaiv qhov sib txawv raws li cov txheej txheem, thiab cov xov xwm tuaj yeem muab tso rau ntawm cov ces kaum sib txawv. Cov qauv tsim tshwj xeeb tso cai rau cov xov xwm sib cuam tshuam thiab siv kom tau raws li kev ua haujlwm ntau dua. Los ntawm kev tso cai rau cov khoom siv los tiv thaiv cov hlau nplaum ua haujlwm ntau dua, qhov raug tshem tawm hlau raug txhim kho, thaum ua kom muaj kev ruaj ntseg ntawm cov nyhuv demagnetization.

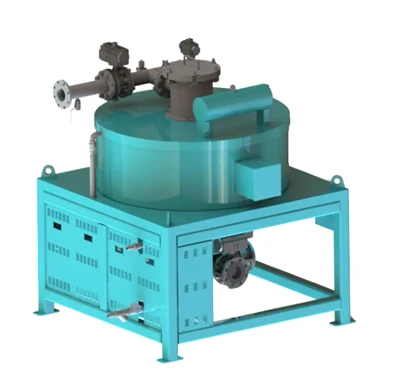

Nthuav Electromagnetic Separator Khoom Tsim

1. Nruab nrab (screen optimization tsim)

Hom xaiv: ob hom: zoo tib yam mesh thiab loj mesh; xaiv cov ntxaij vab tshaus nrog cov mesh sib txawv raws li qhov fluidity ntawm cov khoom.
Cov khoom siv tshuaj ntsuam: siab sib nqus permeability thiab hnav- cov ntaub ntawv tiv taus (xws li 430 series stainless hlau, thiab lwm yam), electrolysis, polishing, thiab sandblasting.

2. Roj txias ntws simulation tsim

Lub voj voog cua txias zoo tuaj yeem tiv thaiv qhov tshwm sim ntawm qhov chaw tuag thiab txhim kho kev ua kom txias.
Los ntawm kev simulation, cov nyhuv ntawm cov roj txias rau sab hauv ntawm lub demagnetizer yog simulated kom tau txais txoj kev zoo tshaj plaws ntawm cov roj cua txias kom ntseeg tau ntev - lub sijhawm ua haujlwm ruaj khov ntawm cov khoom siv.

3. Zuag qhia tag nrho tsim ntawm lub siab magnetic teb coil

Los ntawm kev ua kom zoo tag nrho cov qauv tsim los ntawm cov lej simulation, cov cua kub hauv cov tub ntxhais sib nqus sib nqus induction tuaj yeem ncav cuag 6000Gs, thiab qhov ntsuas qhov sib nqus sib nqus induction yog siab dua 24000Gs (tus nqi theoretical).

4. Internal dual -kev ua kom txias tsim

Cov roj hluav taws xob tshwj xeeb hauv kev ua kom txias + dej hauv hluav taws xob sab nrauv tsim tau txais los ua kom ntseeg tau tias lub tshuab hluav taws xob electromagnetic yog txias sib npaug yam tsis muaj qhov chaw tuag thiab hauv zos dhau - kub tsis xws luag. Ua ke nrog lub tswb tsis siv neeg ua haujlwm thiab kev tswj xyuas nruj, lub tshuab hluav taws xob electromagnetic tuaj yeem lav tau lub neej ntev kev pab cuam ntau tshaj 10 xyoo.

Qhuav vs ntub Electromagnetic Separator

Xaiv txoj cai electromagnetic separator yog qhov tseem ceeb rau kev tswj cov khoom purity thiab tiv thaiv koj cov cuab yeej. Cov lus hauv qab no qhia txog qhov sib txawv tseem ceeb ntawm cov khoom sib cais qhuav thiab ntub dej, pab koj xaiv cov tshuaj zoo tshaj plaws rau koj cov kab ntau lawm.

Daim ntawv thov ntawm Electromagnetic Separator

Mining & Minerals:Cais hlau thiab lwm yam sib nqus ntawm cov hlau los txhim kho cov khoom zoo.

Recycling & Waste Management:Extract cov hlau los ntawm cov khoom seem, plastics, thiab hluav taws xob pov tseg kom rov ua tau zoo dua.

Kev ua zaub mov:Tshem tawm cov kab mob hlau los ntawm cov nplej, hmoov, lossis cov khoom ntim ntim kom ntseeg tau tias muaj kev nyab xeeb thiab ua raws.

Tshuaj & Pharmaceutical:Tiv thaiv cov khoom siv thiab tswj cov khoom purity los ntawm kev ntes cov khoom zoo ferrous.

Ceramics & iav:Tshem tawm cov hlau impurities los tiv thaiv qhov tsis xws luag thiab txhim kho cov khoom tiav tiav.

Sib tham txog koj cov kev xav tau





Vim li cas thiaj xaiv GME?

Xaiv GME txhais tau tias yuav ntau tshaj li qhov sib cais ntawm electromagnetic; nws txhais tau tias koom tes nrog ib pab neeg uas nkag siab txog koj cov kev cov nyom ntau lawm. Peb nkag siab txog qhov tseem ceeb ntawm kev tshem tawm cov kab mob hlau thiab cov khoom siv tiv thaiv zoo, yog li peb tsim txhua qhov sib cais nrog kev ua haujlwm siab thiab kev ntseeg siab ntawm nws qhov tseem ceeb. Peb cov separators yog customizable tag nrho; Txawm hais tias koj xav tau kev hloov kho rau lub zog, qhov loj me, lossis lub zog sib nqus kom haum rau koj qhov kev ua haujlwm, peb tuaj yeem ua tau raws li koj xav tau. Nrog rau ntau tshaj 15 xyoo ntawm kev muab kev lag luam sib nqus kev daws teeb meem rau cov neeg siv khoom thoob ntiaj teb, kuv tus kheej kom ntseeg tau tias txhua chav ua tau raws li cov qauv nruj. Dhau ntawm cov khoom nws tus kheej, peb muab kev txhawb nqa los ntawm kev taw qhia kev teeb tsa rau kev sib tham, muab kev thaj yeeb rau koj. Xaiv GME kom smoother, nyab xeeb, thiab ntau npaum li cas.

Tham nrog tus kws tshaj lij
