Sib Nqus Phaj Magnet Separators

Sib nqus phaj, tso rau saum cov khoom siv los tiv thaiv lub cev txawv teb chaws los ntawm kev nkag mus rau grinders, screws, thiab lwm yam khoom muaj txiaj ntsig. Plate Magnets tuaj yeem siv rau hauv qhov chaw hnyav, av noo, thiab kub. Kev siv ntau dhau los yog nyob rau hauv lub tua phom, hopper, duct, thiab conveyor rau qhuav lossis ntub dej.

Cov hlau nplaum no tsim kom muaj qhov sib nqus muaj zog uas nkag mus tob rau hauv cov khoom thauj khoom kom tshem tawm cov kab mob hlau. Cov hlau nplaum muaj tsib stainless hlau sab thiab pleev xim rau hlau phaj nrog cov ntsiab lus txuas rau txuas cov hlua txuas.

Sib Nqus Phaj Magnet Separators Nta

1. Ua kom tiav Stainless phaj shielding rau txawm qhuav tej yam kev mob.

2. Muaj kev cai tsim rau flange thiab txhua hom kev sib txuas.

3. Muaj teeb meem nres tsim nrog lub zog siab dua.

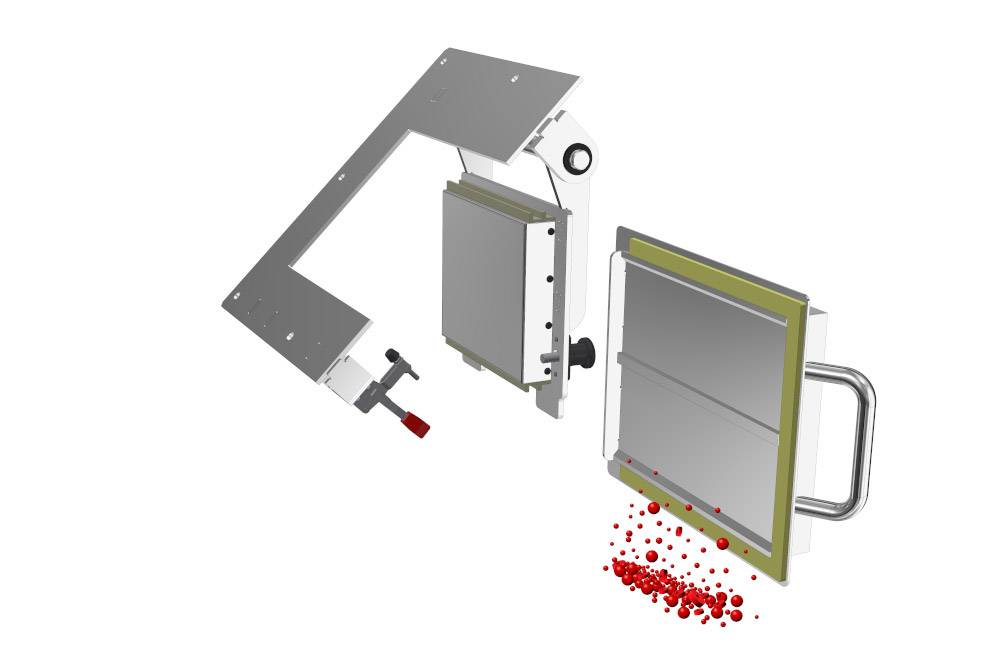

Magnetic Plate Features

Specification ntawm Magnetic Plate

1. Cov khoom siv hauv SUS 304 thiab SUS 316.

2. Qauv PMC nrog cov hlau nplaum ferrite lossis PMN nrog cov hlau nplaum neodymium.

3. Muaj samarium cobalt hlau nplaum rau siab 300℃C siv.

Qauv	L (mm)	W (mm)	C (mm)	D (mm)	Qhov hnyav
PIB 115	159	131	219	191	10
PMF 120	210		270		12
PIB 125	261		321		15
PMF 130	312		372		18
PIB 135	363		423		21
PIB 140	414		474		24
PIB 145	465		525		26
PMF 150	516		576		29
PIB 155	566		626		32
PIB 160	617		677		35
PIB 215	159	200	219	260	14
PMF 220	210		270		18
PIB 225	261		321		22
PIB 230	312		372		27
PIB 235	363		423		31
PWM 240	414		474		35
PIB 245	465		525		39
PMF 250	516		576		43
PIB 255	566		626		48
PWM 260	617		677		52
PIB 315	159	275	219	335	16
PIB 330	210		270		22
PIB 335	261		321		29
PIB 330	312		372		36
PIB 335	363		423		42
PIB 340	414		474		49
PIB 345	465		525		56
PIB 350	516		576		63
PIB 355	566		626		69
PIB 360	617		677		76

product-700-363

Qauv	L (mm)	W (mm)	C (mm)	D (mm)	Qhov hnyav
PMN115	159	131	219	191	8
PMN120	210		270		9
PMN125	261		321		11
PMN130	312		372		14
PMN135	363		423		16
PMN140	414		474		18
PMN145	465		525		20
PMN150	516		576		22
PMN155	566		626		24
PMN160	617		677		27
PMN215	159	200	219	260	11
PMN220	210		270		14
PMN225	261		321		17
PMN230	312		372		21
PMN235	363		423		24
PMN240	414		474		27
PMN245	465		525		30
PMN250	516		576		34
PMN255	566		626		36
PMN260	617		677		40
PMN315	159	275	219	335	12
PMN330	210		270		17
PIB 335	261		321		22
PMN330	312		372		27
PIB 335	363		423		32
PMN340	414		474		37
PIB 345	465		525		43
PMN350	516		576		47
PMN355	566		626		52
PMN360	617		677		58

Lub Magnetic Plate Ua haujlwm li cas

Cov hlau nplaum ua haujlwm los ntawm kev tsim kom muaj zog, tsom hlau nplaum thoob plaws lub phaj nto. Raws li koj cov khoom txav los ntawm lub chute los yog raws li lub conveyor, ferrous contaminants xws li bolts, screws, thiab hlau nplua yog attracted rau lub magnetic teb thiab ruaj ntseg nyob rau hauv qhov chaw.

Cov khoom siv huv si txuas ntxiv mus rau hauv qab, thaum cov hlau nplaum tseem nyob ntawm lub phaj kom txog thaum ntxuav. Vim tias cov hlau nplaum phaj siv cov hlau nplaum tas mus li, koj tsis tas yuav muaj hwj chim, tswj, lossis txav qhov chaw. Thaum koj nruab lub phaj hlau nplaum ze rau cov khoom ntws thiab loj nws kom raug, koj ua tiav zoo sib xws, txhim khu kev qha hlau sib cais nrog kev saib xyuas tsawg.

Daim ntawv thov rau Suspended Phaj Magnets

Koj siv cov hlau nplaum uas raug tshem tawm txhua qhov chaw yuav tsum tau tiv thaiv los ntawm cov hlau nplaum ua ntej mus txog cov cuab yeej tseem ceeb. Lawv feem ntau ntsia rau ntawm cov khoom siv, cov chutes, thiab hoppers kom tshem tawm cov kab mob hlau thaum ntxov.

Cov ntawv thov ib txwm muaj xws li mining thiab aggregates, qhov twg phaj hlau nplaum tiv thaiv crushers thiab cov ntxaij vab tshaus; recycling thiab pov tseg ua, tiv thaiv hlau puas; thiab plastics, ntoo, thiab biomass, qhov twg hlau tawg tuaj yeem ua rau cov tshuab qis qis. Lawv kuj tau siv dav hauv nplej, pub, thiab ua zaub mov los txhim kho cov khoom purity. Thaum loj npaum li cas, cov hlau nplaum phaj pab koj txo qis sijhawm, tiv thaiv cov khoom siv, thiab tswj cov khoom ruaj khov.

Applications For Suspended Plate Magnets

FAQ

Q: Qhov siab ncua kev kawm ntawv twg muab qhov kev sib cais zoo tshaj plaws?

A: Koj tau txais kev sib cais zoo tshaj plaws thaum lub phaj hlau nplaum tau teeb tsa ze rau ntawm cov khoom kom muaj kev nyab xeeb. Qhov luv luv ntawm cov hlau nplaum thiab cov khoom siv txhim kho cov hlau nplaum sib nqus, tshwj xeeb tshaj yog rau cov hlau me me lossis cov hlau tsis muaj zog.

Q: Ntev npaum li cas yuav tsum tau ntxuav lub phaj hlau nplaum?

A: Kev tu ntau zaus nyob ntawm cov kab mob sib kis. Tsawg tramp hlau yuav tsum tau tu txhua lub sijhawm, thaum muaj kev sib kis loj lossis txuas ntxiv ua haujlwm zoo dua nrog tus kheej- qauv tsim kom huv si kom ruaj khov.

Q: Cov khoom siv hlau nplaum twg zoo dua rau cov plua plav hlau zoo?

A: Cov hlau nplaum tsis tshua muaj hauv ntiaj teb (NdFeB) zoo dua rau cov plua plav hlau zoo vim lawv lub zog sib nqus ntau dua, uas txhim kho kev ntes cov khoom me me.

Q: Puas muaj stainless hlau vaj tse nyob?

A: Yog. Phaj hlau nplaum feem ntau muaj nrog 304 lossis 316L stainless hlau vaj tse, haum rau cov khoom noj, tshuaj, lossis corrosive ib puag ncig.

Q: Cov hlau nplaum hlau nplaum puas tuaj yeem ua kev cai - loj?

A: Yog. Phaj hlau nplaum tuaj yeem ua tau raws li kev cai- qhov loj kom phim koj qhov dav dav dav, chute qhib, lossis qhov chaw teeb tsa, ua kom muaj kev pabcuam tag nrho thiab kev sib cais zoo.
