Ntawm cov nto moo me me muaj zog micro me me hlau nplaum rau quartz watch manufacturers, nws yog ib tug neeg muag khoom nyob rau hauv Suav teb, txais tos rau cov lag luam wholesale me me muaj zog micro me me hlau nplaum rau quartz saib los ntawm peb lub hoobkas.
Micro Magnet, Me Magnets Muaj Zog Micro Tiny Magnets rau Quartz Saib
Great Magtech Electric tshwj xeeb hauv kev tsim khoom thiab xa tawm cov khoom zoo tshaj plaws micro precision ting hlau nplaum / cov hlau nplaum me me nrog precisions txog li {{0}}}.0002'' / 0.005mm. Peb kuj muab cov hlau nplaum me me / me me muaj zog hlau nplaum raws li koj qhov kev thov.
Peb cov hlau nplaum me me / cov hlau nplaum me me tau siv dav hauv micro motor, micro meter, kev sib txuas lus kho qhov muag, quartz saib, instrumentation, inductor, cov khoom siv kho mob, hluav taws xob-acoustic, cov koob yees duab digital motor, tsheb dashboard, sensor thiab lwm yam.
Hauv qab no yog peb li niaj zaus me me muaj zog hlau nplaum khoom npe. Great Magtech Electric muaj peev xwm muab micro precision me me muaj zog hlau nplaum / cov hlau nplaum me me nrog rau qhov ntau thiab tsawg thiab cov duab.
Rotor Tiny Magnets / Me Magnets rau Quartz Saib Movement | ||||||
Khoom siv | OD (mm) | ID (mm) | Thickness (hli) | Magnetization kev taw qhia | Kev kam rau siab (mm) | Txheej |
SmCo | 0.8-0.2 | 0.25-0.60 | 0.35-0.60 | Diametrical | +/-0.005- +/-0.015 | Tsis Muaj Txheej |
NdFeB | 0.8-0.2 | 0.25-0.60 | 0.35-0.60 | Diametrical | +/-0.005- +/-0.015 | Parylene C, Nickel Coated |
Ntiv nplhaib me me rau Fiber Optics | ||||||
Khoom siv | OD (mm) | ID (mm) | Thickness (hli) | Magnetization kev taw qhia | Kev kam rau siab (mm) | Txheej |
SmCo | 1 | 0.5 | 0.35 | Axial | +/-0.01- +/-0.02 | Tsis muaj txheej, Nickel txheej |
Ntiv Nplhaib Me Muaj Zog Magnets / Micro Magnet rau Mobile Tsav (Thin phab ntsa thiab qhov ntev) | ||||||
Khoom siv | OD (mm) | ID (mm) | Thickness (hli) | Magnetization kev taw qhia | Kev kam rau siab (mm) | Txheej |
SmCo | 2.5 | 1.2 | 2.8 | Diametrical | +/-0.01 | Tsis muaj txheej, Nickel Coated |
NdFeB | 2.5 | 1.2 | 2.8 | Diametrical | +/-0.01 | Tsis muaj txheej, Nickel Coated |
Ntiv nplhaib Micro Magnets rau Motormeter Motor | ||||||
Khoom siv | OD (mm) | ID (mm) | Thickness (hli) | Magnetization kev taw qhia | Kev kam rau siab (mm) | Txheej |
SmCo | 1.6 | 0.6 | 0.6 | Diametrical | +/-0.01 | Nickel Coated |
NdFeB | 1.6 | 0.6 | 0.6 | Diametrical | +/-0.01 | Nickel Coated |
Micro Magnets rau Sensor thiab lwm yam | ||||||
Khoom siv | Spec | Loj | Magnetization kev taw qhia | Kev kam rau siab (mm) | Txheej | |
SmCo | Lub tog raj kheej | D*H | 0.2 | Axial | +/-0.005 | Nickel Coated, Parylene C, Kub Coated |
NdFeB | Nplhaib | D*d*H | 0.2 | |||
Pobzeb | R*r*H*T*W | 0.2 | ||||
Daim duab plaub | W*L*H | 0.2 | ||||
Holed Rectangle | L*W*H*d | 0.2 | ||||
Ntim ntawm Me Me Magnets:
Peb cov hlau nplaum me me / cov hlau nplaum me me / cov hlau nplaum me me tau ua tib zoo saib xyuas kom tsis txhob muaj kev puas tsuaj thaum lub sijhawm khaws cia thiab kev thauj mus los thiab khaws cov khoom zoo ntawm peb cov khoom qub.
Lwm Lub Npe ntawm Me Me Magnets:
Me Magnet
me me muaj zog hlau nplaum
micro hlau nplaum
Micro Precision Magnet
Cim npe nrov: me me muaj zog micro me me hlau nplaum rau quartz saib, Tuam Tshoj, Hoobkas, manufacturers, tus neeg muag khoom, lag luam wholesale

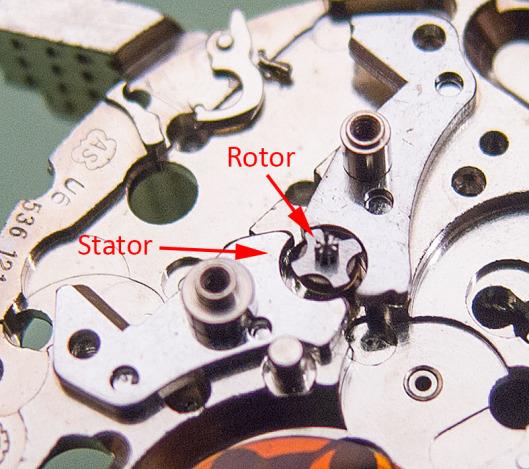

Txoj Haujlwm 1: Cov hlau nplaum me me / micro hlau nplaum hauv Stepper lub cev muaj zog hauv lub moos
Stepper lub cev muaj zog nyob rau hauv lub saib muaj xws li cov stator ua los ntawm cov hlau mos thiab uas nyob rau hauv lub rotor los yog armature, uas yog ib tug mus tas li me me hlau nplaum / micro hlau nplaum. Txhua tus mem tes los ntawm lub kauj hlau nplaum ua rau lub stator, tsim ib qho chaw sib nqus uas tawm tsam ntawm cov hlau nplaum ruaj khov / micro hlau nplaum / cov hlau nplaum me me hauv lub rotor, ua rau nws tig los ntawm 180 degrees. Cov mem tes tom ntej, uas nws qhov polarity yog tam sim no thim rov qab, ua tiav cov txheej txheem los ntawm kev ua kom ntxiv 180 degree tig ntawm lub rotor. Txhua tus mem tes los ntawm lub coil magnetizes lub stator, tsim ib qho chaw sib nqus uas tawm tsam cov hlau nplaum ruaj khov hauv lub rotor, ua rau nws tig los ntawm 180 degrees. Cov mem tes tom ntej, uas nws qhov polarity yog tam sim no thim rov qab, ua tiav cov txheej txheem los ntawm kev ua kom ntxiv 180 degree tig ntawm lub rotor.
Txoj Haujlwm 2: Cov hlau nplaum me me / cov hlau nplaum me me / micro hlau nplaum hauv MegaQuartz
Thaum thawb lub qia rov qab rau hauv nruab nrab txoj hauj lwm peb cov hlau nplaum me me nyob rau hauv ob txheej txheej nruab nrab lub log yog nyiam los ntawm cov hlau teeb tsa iav thiab tau kho qhov kawg ntawm lub teev tes kom nws sib haum xeeb nrog feeb.

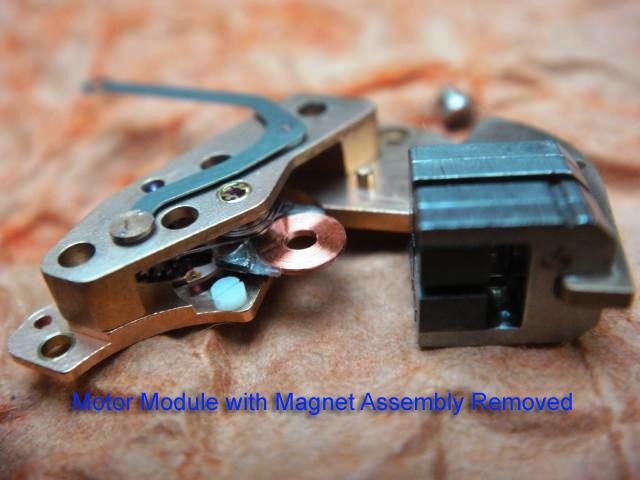

Lub kauj nyob rau hauv lub cev muaj zog module yog securely muab zais nyob rau hauv nruab nrab ntawm ob lub me me muaj zog hlau nplaum / micro hlau nplaum yog li mus los ntawm kev tshem tawm (sliding) cov hlau nplaum me me los ntawm lub cev muaj zog thiab xyuas cov coil kuj. Muab lub cev tso rau hauv cawv kom ntev dua thiab nrog txhuam me me tshem tawm cov roj teeb uas seem lossis cov av uas tuaj yeem cuam tshuam kev khiav tawm.
Cov hlau nplaum me me / micro hlau nplaum hauv LONGINES ULTRA-QUARTZ
Lub 4.3kOhm lub cev muaj zog kauj yog tej zaum yuav kho sai thiab tsuas yog glued rau lub torsion bar. Qhov kev daws teeb meem no tsis ua pov thawj txhim khu kev qha yog li nrhiav kev ua haujlwm saib yog qhov txuj ci tseem ceeb tiag tiag. Lub kauj yog tag nrho raug thiab vibrates nyob rau hauv nruab nrab ntawm ob lub micro hlau nplaum / me me hlau nplaum - qhov tsawg kawg ntawm kev poob siab thaum hnav yuav ua rau lub kauj txav thiab khawb nws qhov chaw hauv qhov sib nqus me me.
